Product Details

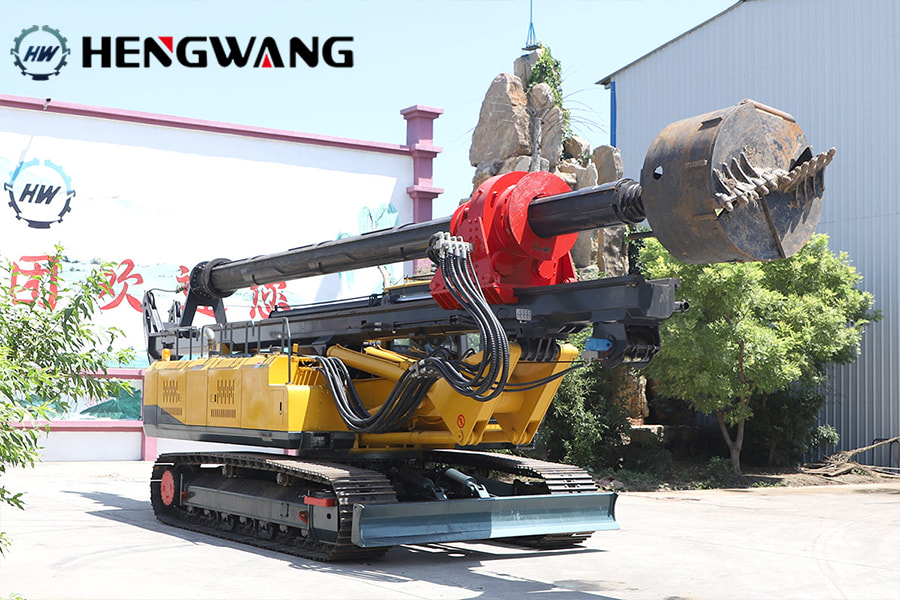

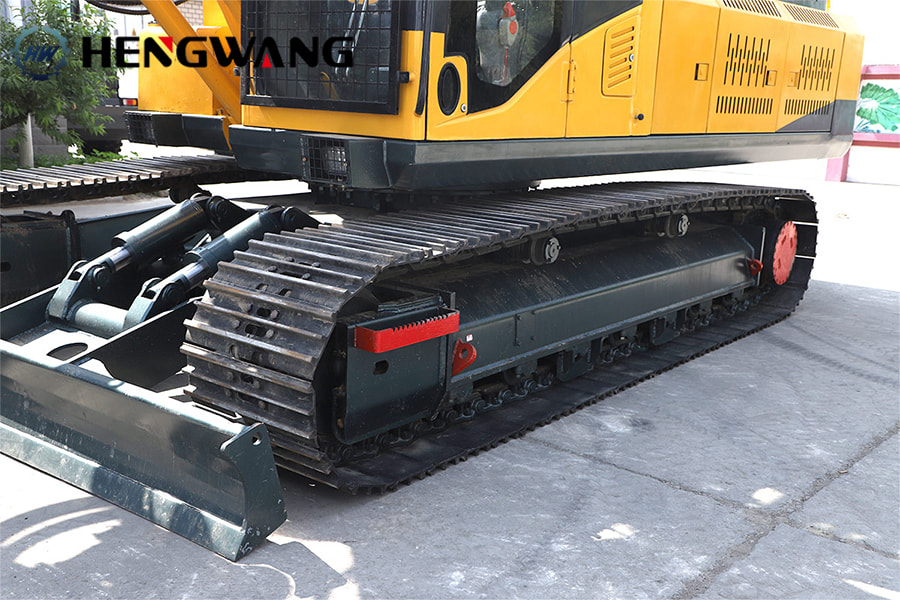

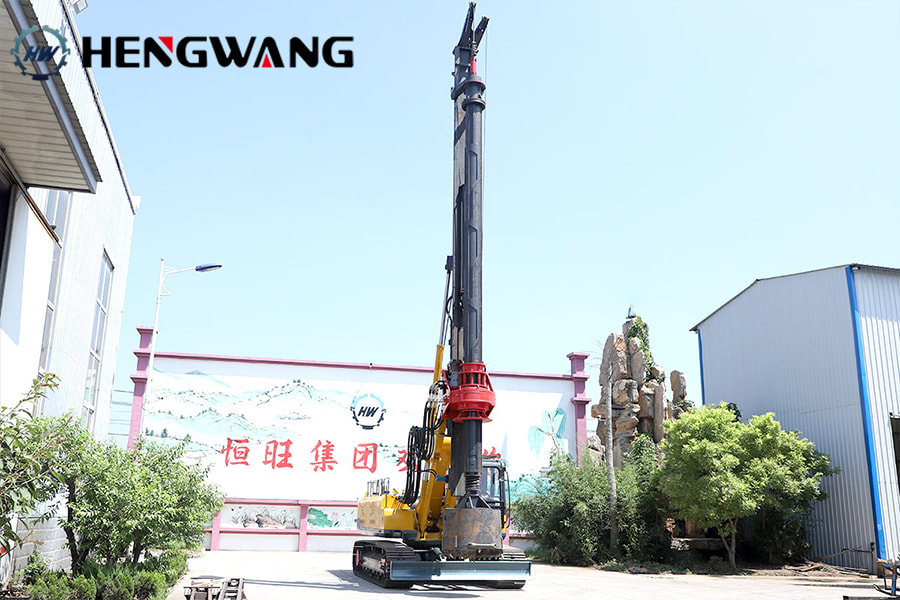

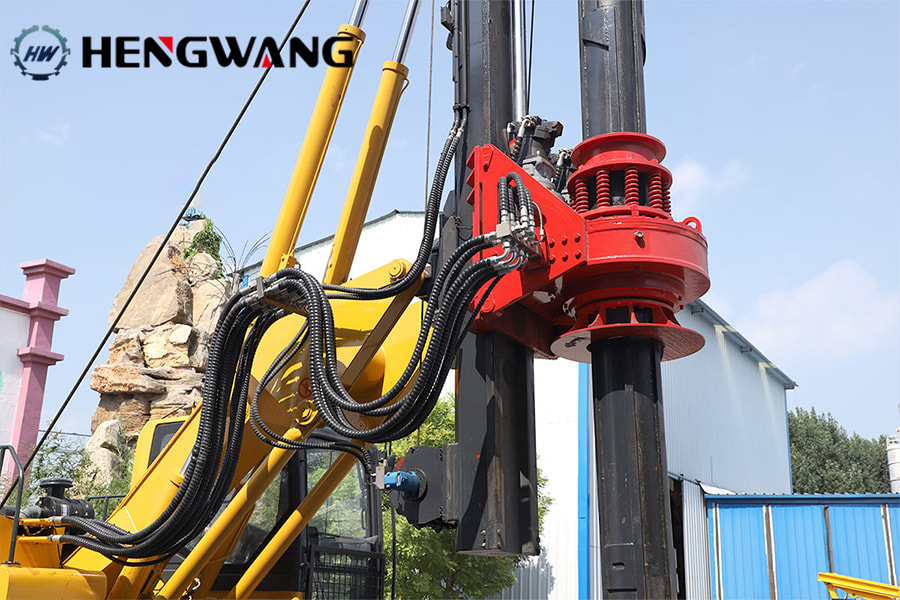

The rotary locking rod drilling rig adopts crawler-type hydraulic telescopic chassis, self-climbing and folding folding drill mast, telescopic drill rod and many other technical devices. It is a construction machine suitable for forming holes in the design of building foundations. Mainly suitable for the construction of soil layers, such as sandy soil, cohesive soil, silty soil, etc., it is widely used in various foundation structures, such as monolithic piles, solid walls and foundation reinforcement.
Compared with conventional rotary drilling rigs, rod locking rotary drilling rigs have many objective advantages, such as the ability to drill through special soils such as cement soil, hard sandy soil layers, and rock layers. Suitable for large-scale engineering construction, buildings, high-speed, high-speed railways 3. Railway engineering construction. The structure of the machine is fast, has high efficiency, good drilling quality, is economical and durable.
| Parameters/Model | HWYDR350 | |||
| Oversized | Working Size
(length×width×height) |
m | 8.8×2.8×12.8 | |
| Transport size
(length×width×height) |
m | 12.8×3.0×3.65 | ||
| Machine Weight | T | 28 | ||
| Maximum drilling diameter | mm | 1500-1800 | ||
| Maximum drilling depth | m | 35 | ||
| Engine | Brand | Cummins | ||
| Model | 6BTAA5.9-C205 | |||
| Nominal capacity | kW/rpm | 153/2000 | ||
