Hydraulic Rock Splitter

Drilling Diameter: 42-50mm
Engine: Electric/Diesel
Configurable Guns No.: 1-10

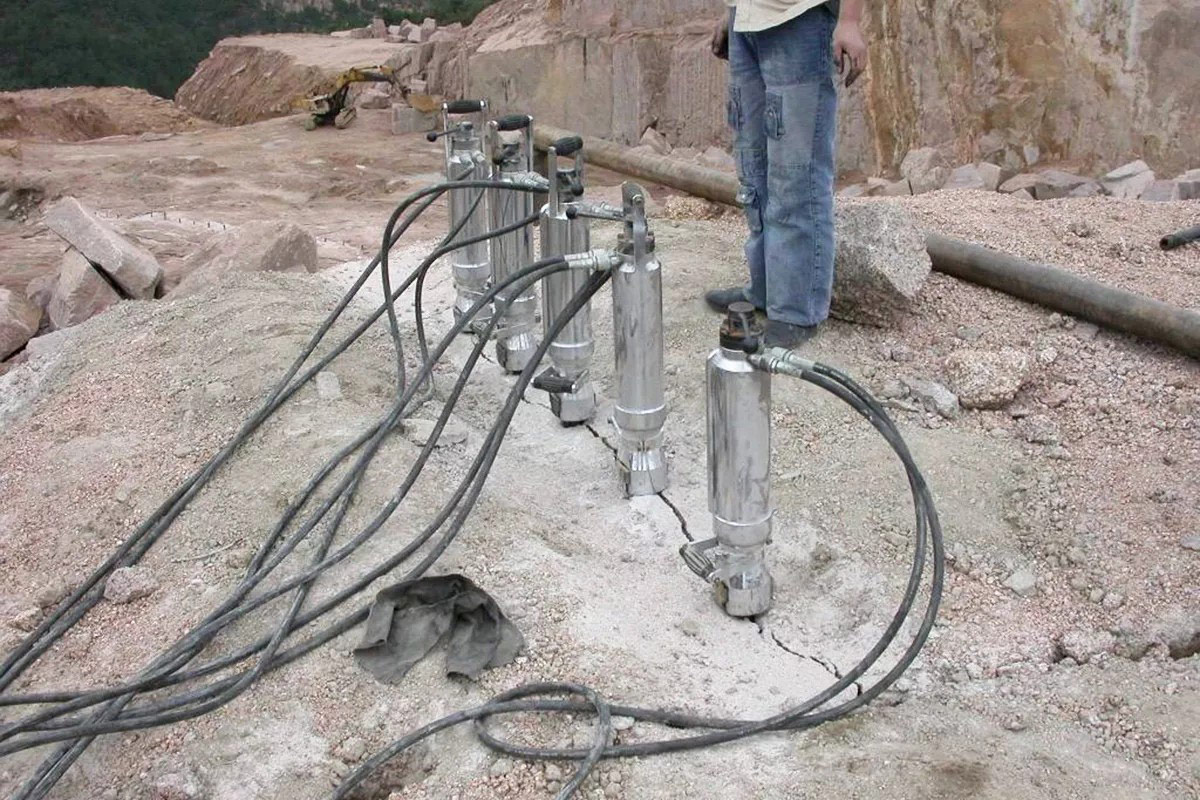

The hydraulic rock & concrete splitter is the most suitable tool for demolition. The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllable split rock or concrete. Especially suit for cabin area where large machine can not work. Such as hydraulic breaker and place where is strictly limited of noise, dust,flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden. Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.

Hydraulic Rock Splitter Features:

1) Powerful (Max:1000T), it can split the stone or concrete easily.

2) High Efficiency, it can split the stone in 5-10 seconds.;

3) Long-life, the wedges stands wear and tear;

4) Easy to operate and maintain.

Splitting cylinders parameters
Model HW80-250 HW80-350 HW80-450 HW90-250 HW90-350 HW90-450
Piston diameter 80mm 80mm 80mm 90mm 90mm 90mm
Drilling diameter Φ42mm Φ45mm Φ50mm Φ42mm Φ45mm Φ50mm
Drilling depth ≧500mm ≧550mm ≧600mm ≧500mm ≧550mm ≧600mm
Wedge block length 250mm 350mm 450mm 250mm 350mm 450mm
Crack width 10~40mm 10~40mm 10~40mm 10~40mm 10~40mm 10~40mm
Splitting time 5~15s 5~15s 5~15s 5~15s 5~15s 5~15s
Theory of separatist force 600T 600T 600T 800T 800T 800T
The actul split force 480T 480T 480T 480T 480T 480T
weight 28Kg 29Kg 30Kg 31Kg 32Kg 33Kg

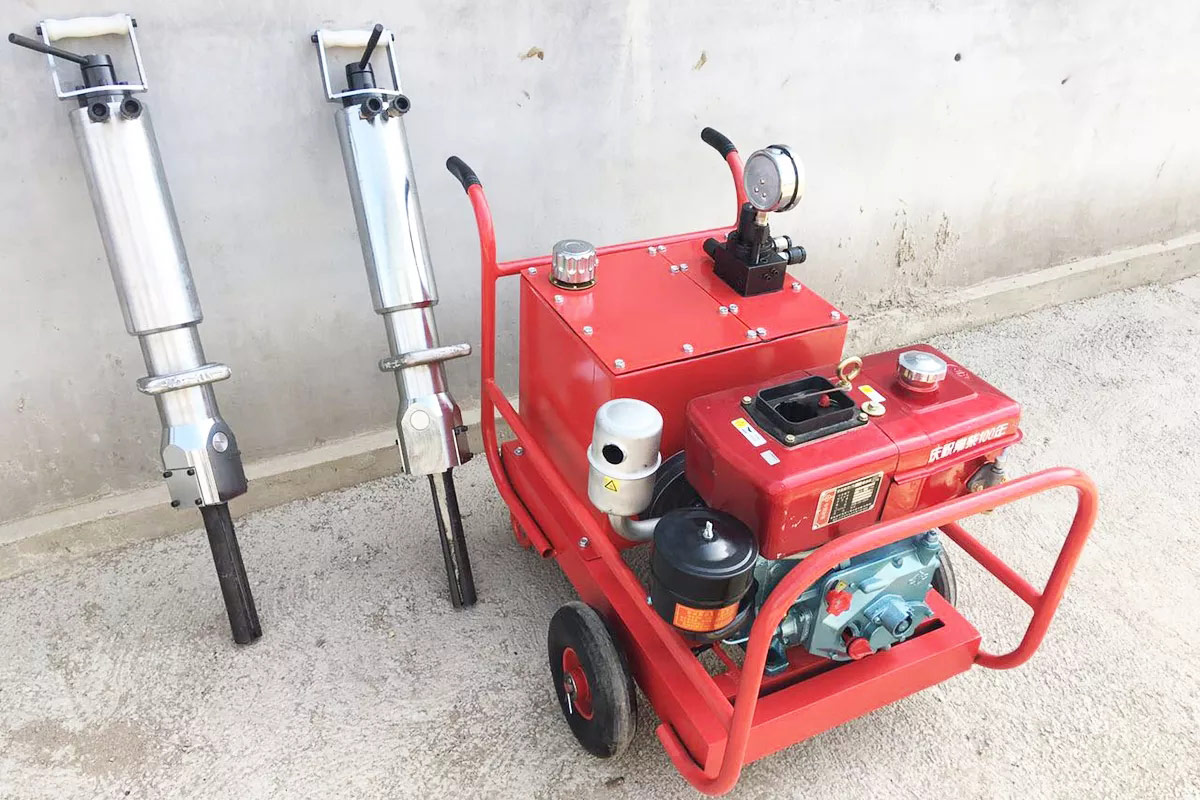

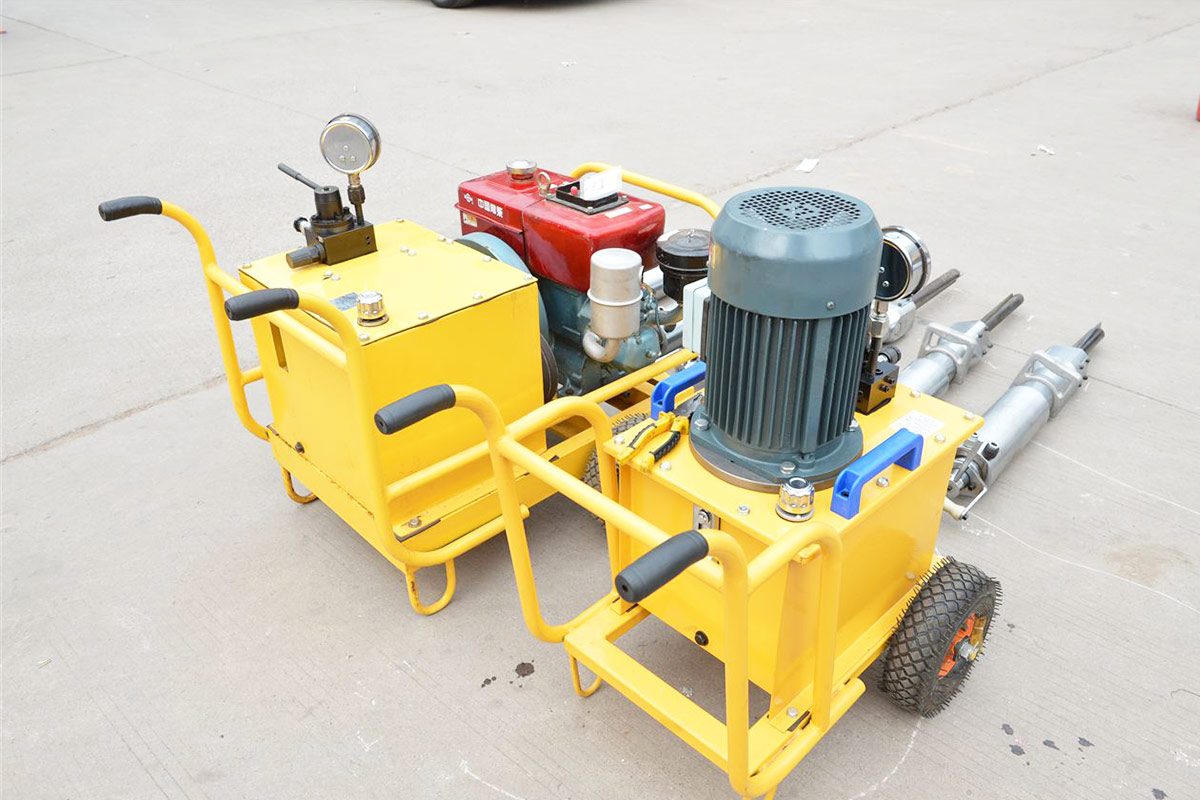

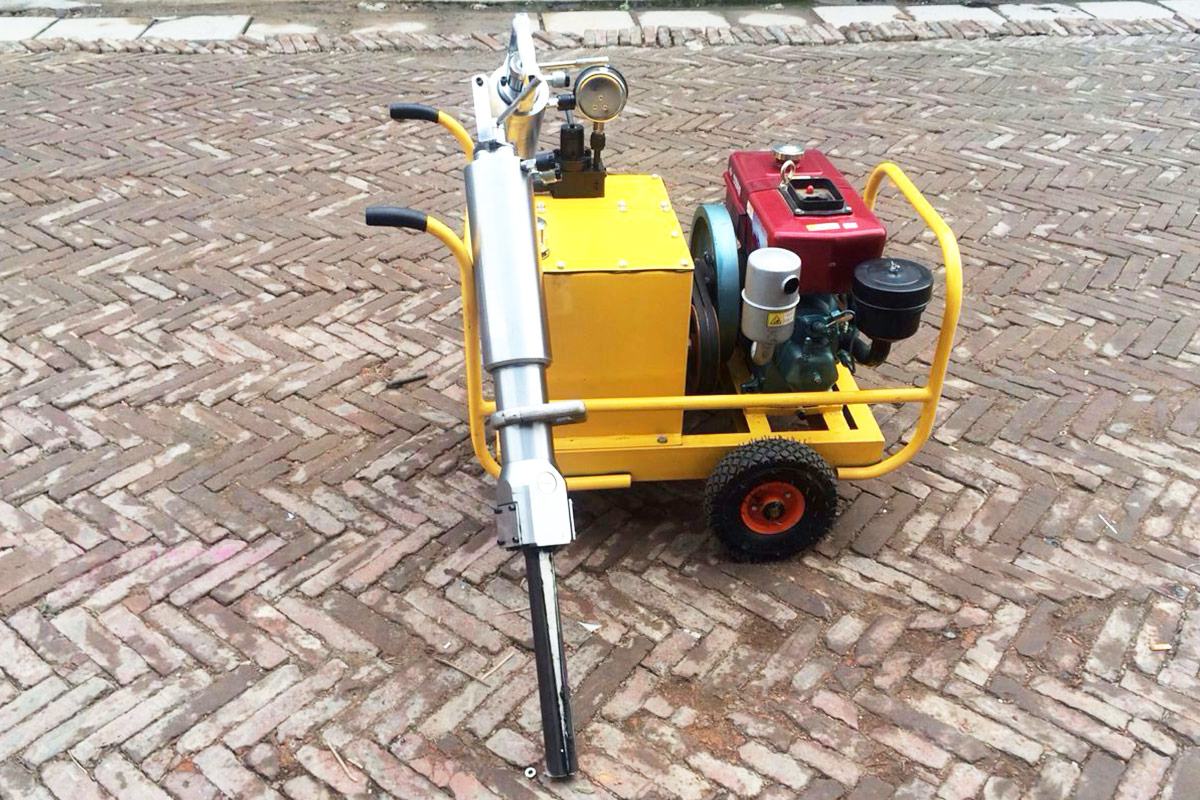

Pump pack parameters
Engine Electric engine Diesel engine
Weight 60kg 110kg 150kg 100kg 130kg 150kg
Capacity of tank 40L 60L 88L 45L 65L 90L
Motor power 3.0KW 4.0KW 5.5KW 3Hp 5Hp 7.5Hp
Working pressure (Mpa) 55-60 55-60 55-60 55-60 55-60 55-60
Working flow (L/min) 2—13 2—13 2—13 2—13 2—13 2—13
Configurable guns number 1—5 2—7 2—10 1—3 3—8 3—10
