| Item | Specification |
| Overall Configuration | |
| Operating Weight | 3300kg |

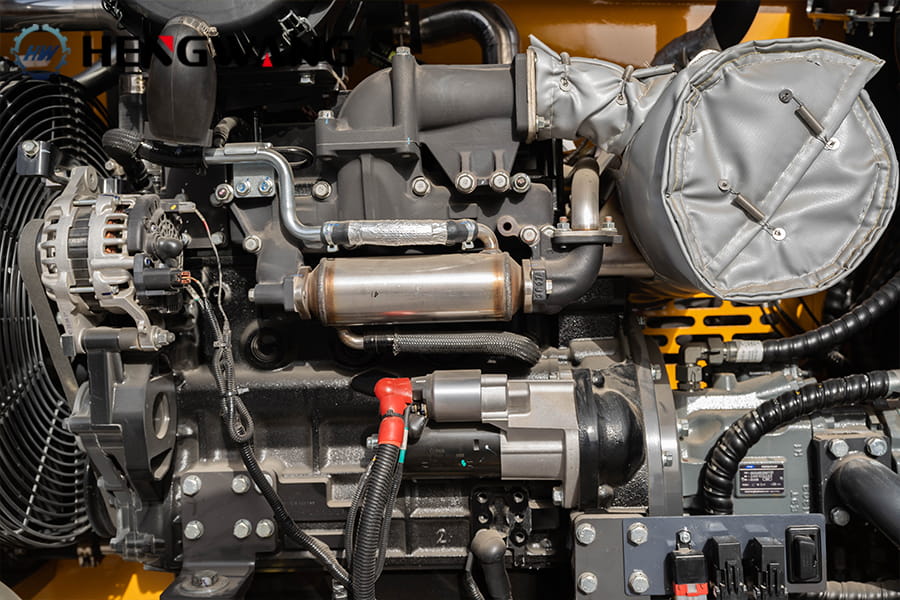

| Engine Model | Yanmar 4TNV98C-CSCTY |
| Engine Power | 26.4kW / 2200r/min |
| Fuel Tank Capacity | 72L |
| Hydraulic System | Hengli |
| Mud Pump: Displacement | 76L/min |
| Mud Pump: Maximum Load | 75L/min |
| Push-Pull Force | 50kN |
| Rotary Torque | Single motor drive |
| Hydraulic Oil Tank Capacity | 120L |
| Working Pressure | 20MPa |
| Hydraulic Pump Unit | Hengli |
| Drill Rod Box | Hydraulically adjustable |
| Drill Rod Specifications | 44 rods (Φ42mm drill rod) |
| Technical Parameters | |

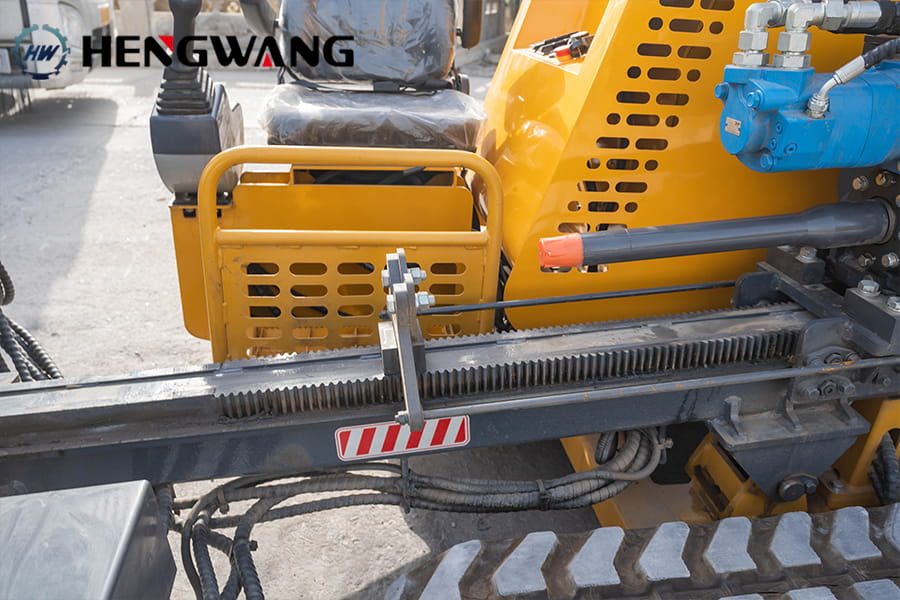

| Powerhead Push-Pull Type | Gear and rack drive |
| Powerhead Maximum Pullback/Feeding Force | 50kN / 50kN |
| Maximum Powerhead Speed | 61m/min |
| Powerhead Rotation Speed | 215r/min |
| Maximum Powerhead Torque | 2000N·m |
| Drill Rod Specifications | Φ42×1828mm |
| Machine Body | |
| Maximum Entry Angle | 16° ~ 20° |
| Crawler | Rubber crawler |
| Travel Speed | 2km/h |
| Mud Pump | |
| Maximum Flow Rate | 75L/min |
| Maximum Pressure | — |
| Reaming Hole Diameter | Φ150mm ~ Φ400mm (depending on geological conditions) |
| Maximum Construction Distance | 100m (depending on geological conditions) |
| Overall Dimensions | |
| Total Length | 3880mm |
| Total Width | 1330mm |
| Total Height | 1800mm |
