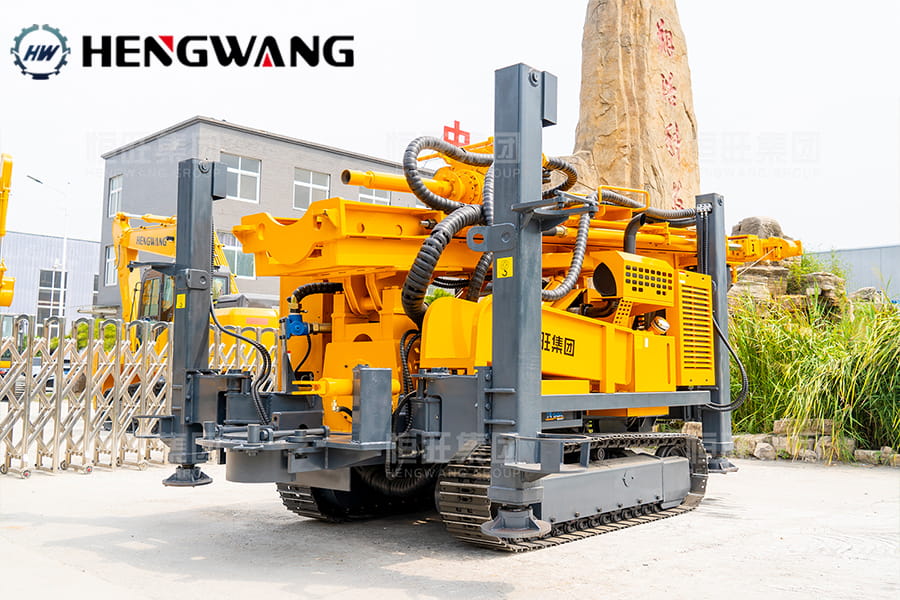

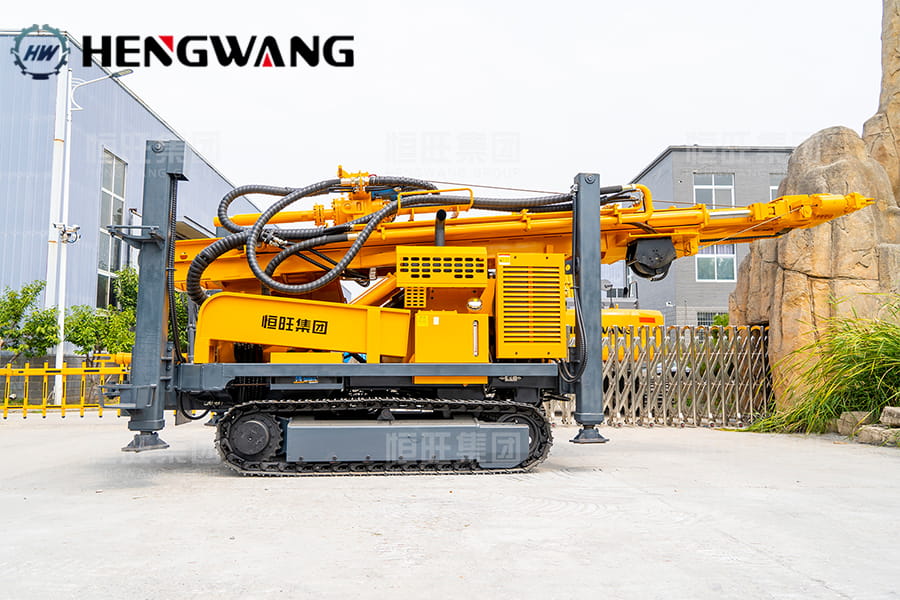

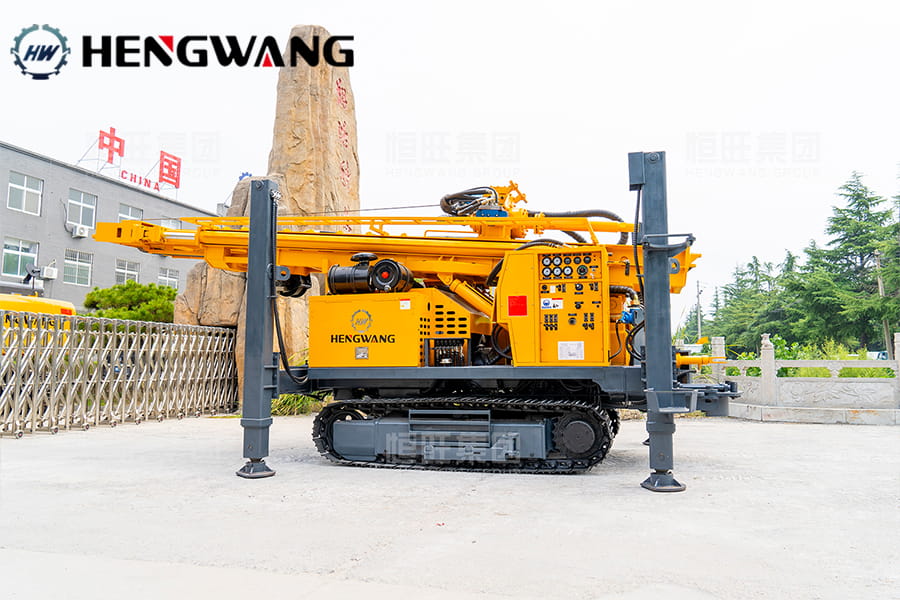

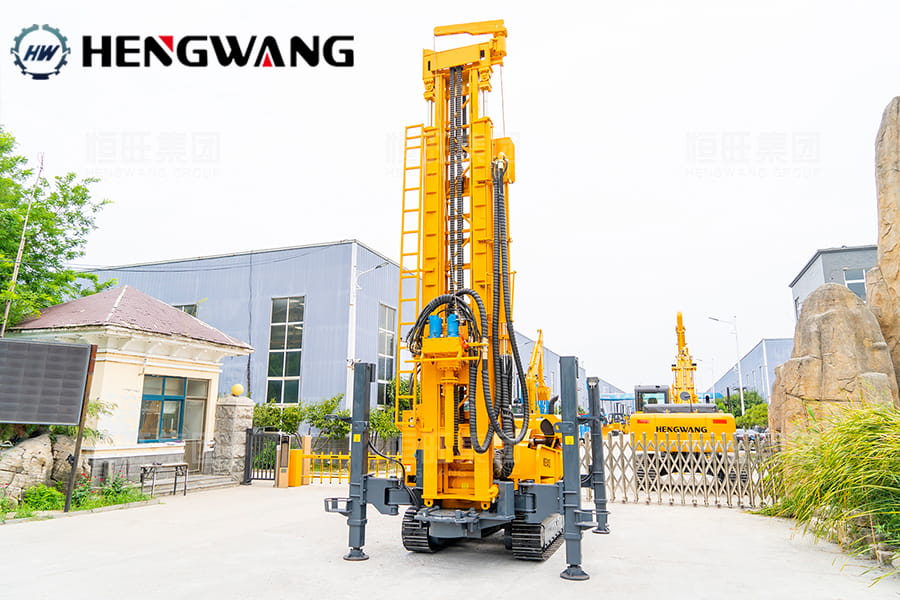

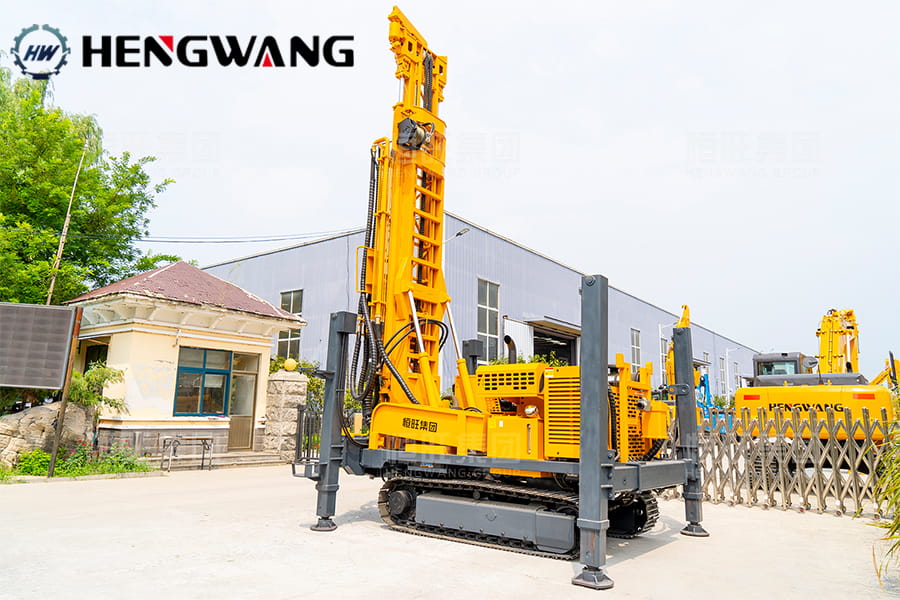

| Model | HW-500S |
| Engine | Yuchai Co., Ltd (China Stage II) |
| Power | 110KW |
| Main Pump | High-pressure gear pump |
| Max Drilling Depth | 500m |
| Drilling Diameter | 105～400mm |
| Working Air Pressure | 1.2～3.5 MPa |
| Air Consumption | 16-55 m³/min |
| Drill Pipe Length | 6m |
| Drill Pipe Diameter | Φ89/Φ102mm |

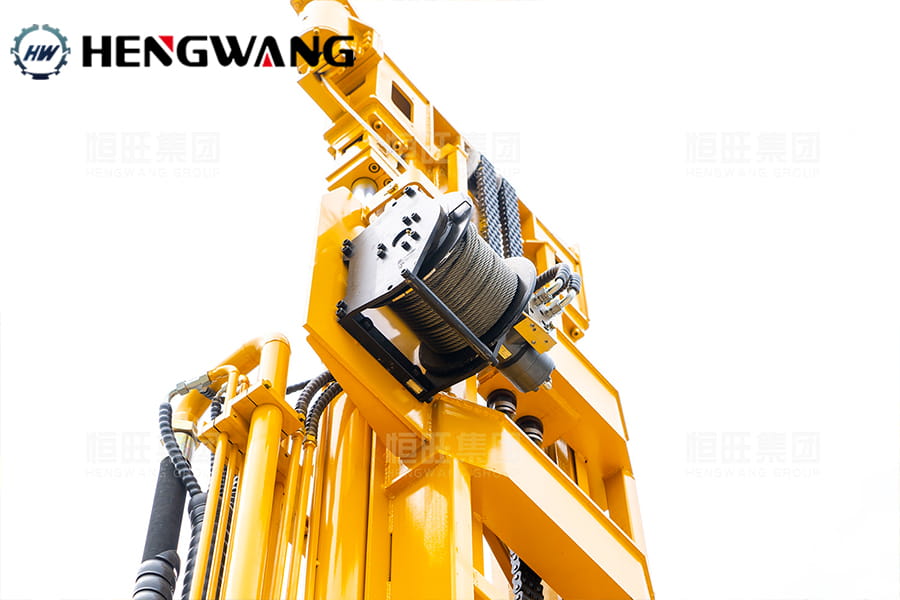

| Hoisting Capacity | 6t / Lifting capacity：30t |
| Slow lifting speed | 4m/min / Slow feed speed: 0.5-5m/min |
| Rapid lifting speed | 29m/min / Rapid feed speed: 48m/min |
| Rotation Torque | 10000/5000Nm |
| Rotation Speed | 0-75r/min; 0-150r/min |
| Drilling Efficiency | 10-35m/h |
| Walking Speed | 3Km/h |
| Climbing Ability | 21° |
| Machine Weight | 10.5t |
| Dimensions (L×W×H) | 6.2×1.85×2.55m |
| Suitable Terrain | Loose strata and bedrock |
| Drilling Method | DTH impactor drilling |
| Equipped with impactor | High-pressure pneumatic series |
