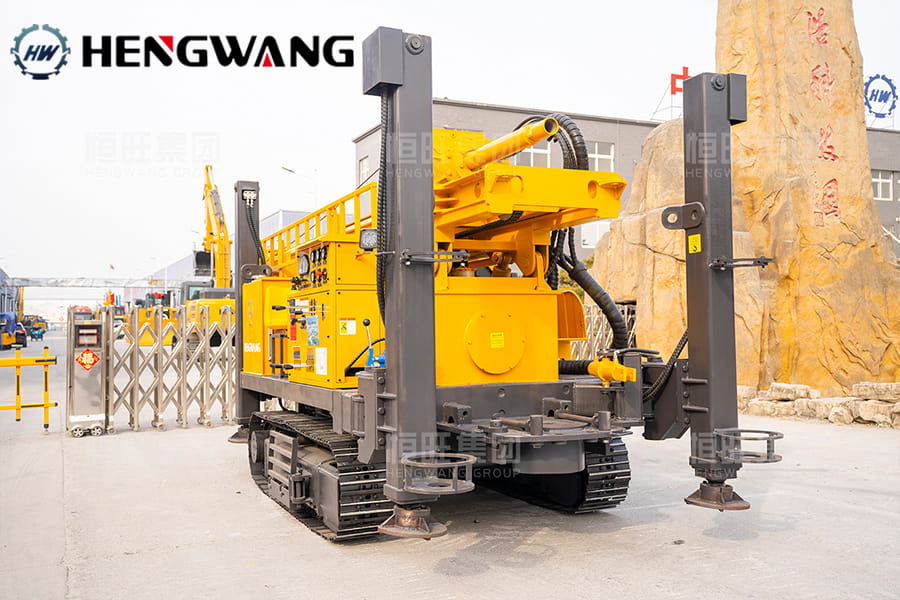

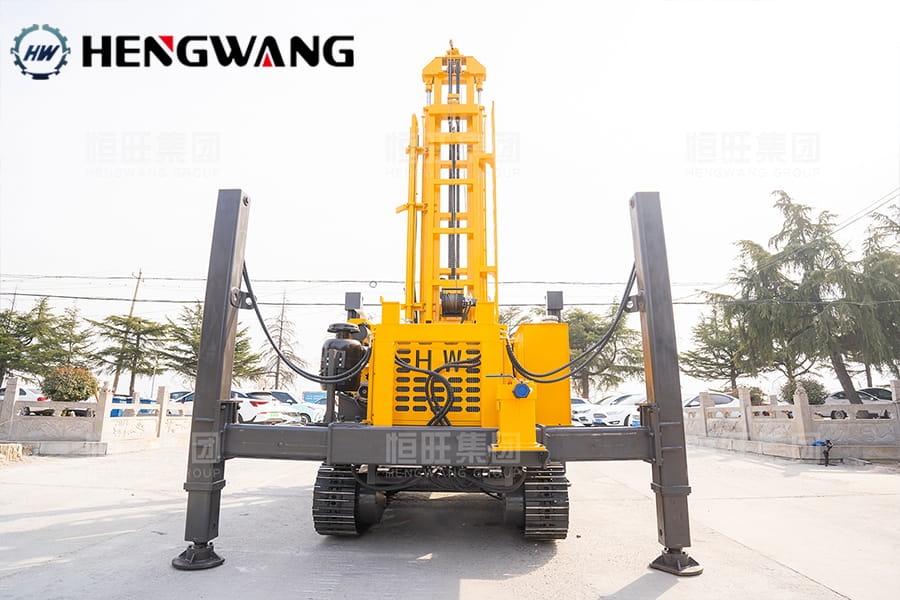

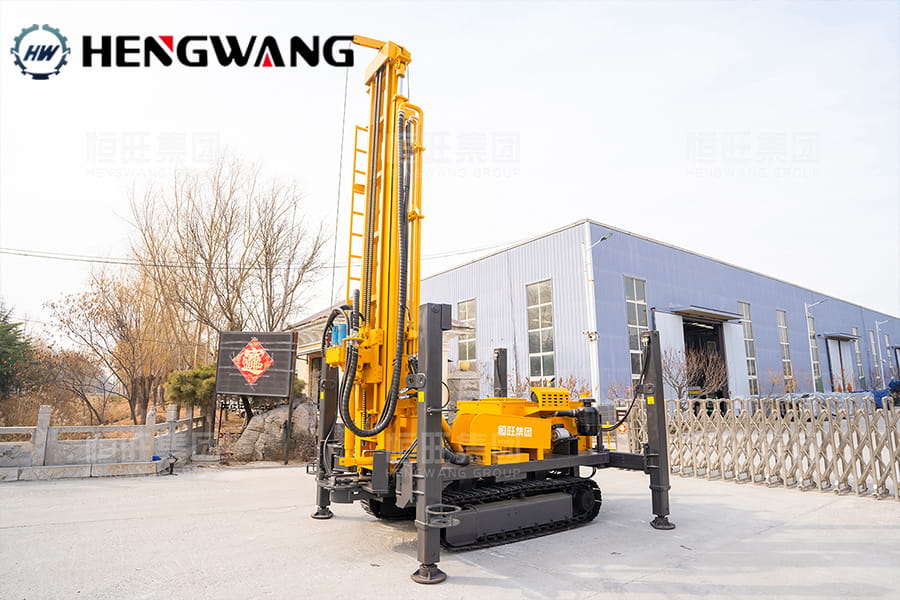

| Parameter | HW-450S (6.6m Mast) | HW-450S (3.6m Mast) |
| Model | HW-450S | HW-450S |
| Mast Height | 6.6 meters | 3.6 meters |
| Engine Brand | Yuchai Power | Yuchai Power |
| Power | 110 kW | 110 kW |
| Main Pump | — | — |
| Max Drilling Depth | 450 m | 450 m |
| Drilling Diameter | 105–400 mm | 105–400 mm |
| Working Air Pressure | 1.2–3.5 MPa | 1.2–3.5 MPa |
| Air Consumption | 16–55 m³/min | 16–55 m³/min |
| Drill Rod Length | 6 m | 3 m |
| Drill Rod Diameter | Φ89 / Φ102 | Φ89 / Φ102 |
| Lifting Force | 3 t lifting capacity 20 t | 3 t lifting capacity 20 t |
| Slow Lifting Speed | — | — |
| Fast Lifting Speed | 30–55 m/min | 30–55 m/min |
| Rotary Torque | 9000/4500Nm | 9000/4500Nm |
| Rotary Speed | 0-90r/min；0-180r/min | 0-90r/min；0-180r/min |
| Drilling Efficiency | 10–35 m/h | 10–35 m/h |
| Travel Speed | 2.5 m | 2.5 m |
| Climbing Ability | 21° | 21° |
| Machine Weight | 8.5 t | 8.5 t |
| Dimensions (L×W×H) | 5.85×1.8×2.4m | 5.85×1.8×2.4m |
| Applicable Strata | Loose layers and bedrock | Loose layers and bedrock |
| Drilling Method | Down-the-hole (DTH) hammer | Down-the-hole (DTH) hammer |
| Equipped Hammer | High air pressure series | High air pressure series |
