| model | HW-TDX-2000GL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 1000-2000-2500(M) |
| Hydraulic system | |
| preset pressure | 28(MPA) |
| Rated flow | 380(L/nin) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 162（KW） |
| Power head | |
| Maximum torque | 1000-4000(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 3500(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 22(T) |
| Feeding force | 11(T) |
| Winch | |
| Lifting force | 1500(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 2000(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |

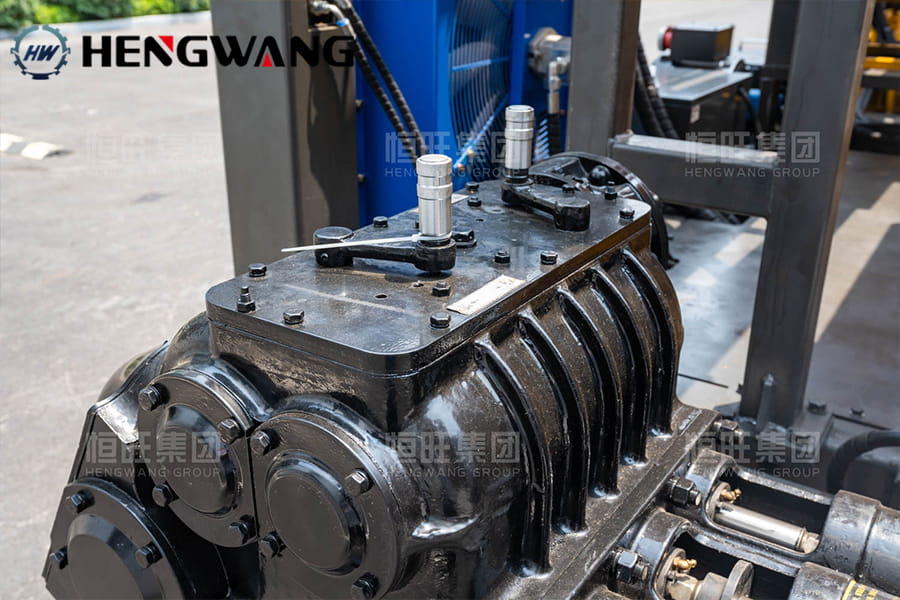

| hydraulic mud pump | |
| mud pump | Contains Bw-320 mud pump |
| flow | 0-320(L/in) |
| pressure | 0-10(MPA) |
| Shipping dimensions | 6300*2200*2700(MM) |
| Total Weight | 12.7(T) |
