| model | HW160L | |
| Drilling depth | 160 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 13.2 | kw |
| weight | 3200 | kg |
| Machine size | 3800*1950*2700 | mm |
| Vertical shaft speed | 142/285/570 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2000 | kg |
| Single rope lifting speed | 0.41-1.64 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |

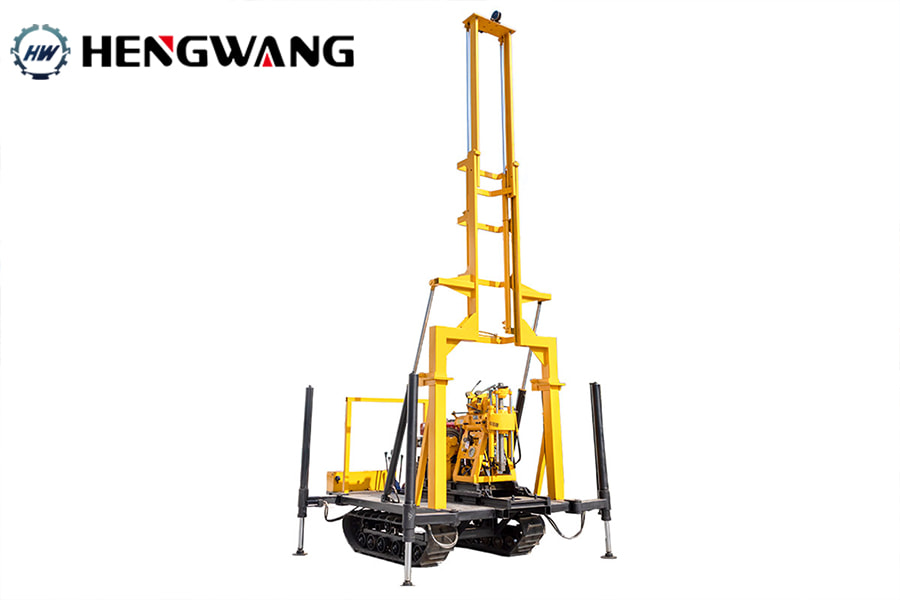

The HW-160L hydraulic drilling rig is a versatile and powerful machine designed for precision and efficiency in various drilling applications.
Built with advanced hydraulic technology, this rig offers exceptional drilling speed and depth control, making it ideal for complex geological
conditions. Its compact design allows for easy transportation and maneuverability in tight spaces, while the durable construction ensures
long-term reliability even in the most demanding environments. The HW-160L is also equipped with user-friendly controls and safety features,
ensuring smooth operation and minimizing downtime. Whether you’re drilling for water, minerals, or other resources, the HW-160L delivers
consistent performance with impressive cost-effectiveness.
